OLED 0.96 Shield

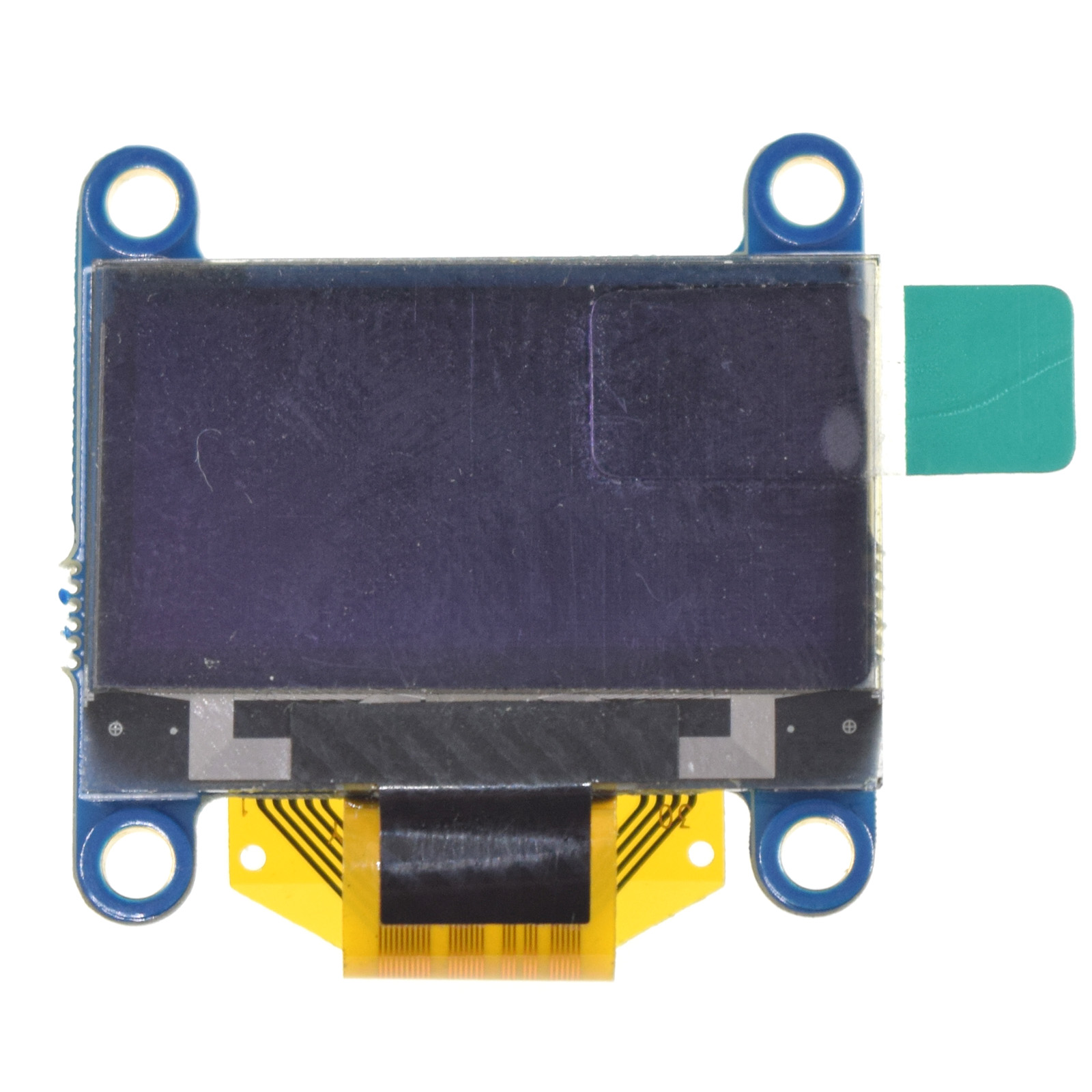

128x64 pixels (0.96” Across) OLED Shield [Buy it]

Features

• Screen Size: 128x64 pixels (0.96” Across)

• Operating Voltage: 3.3V

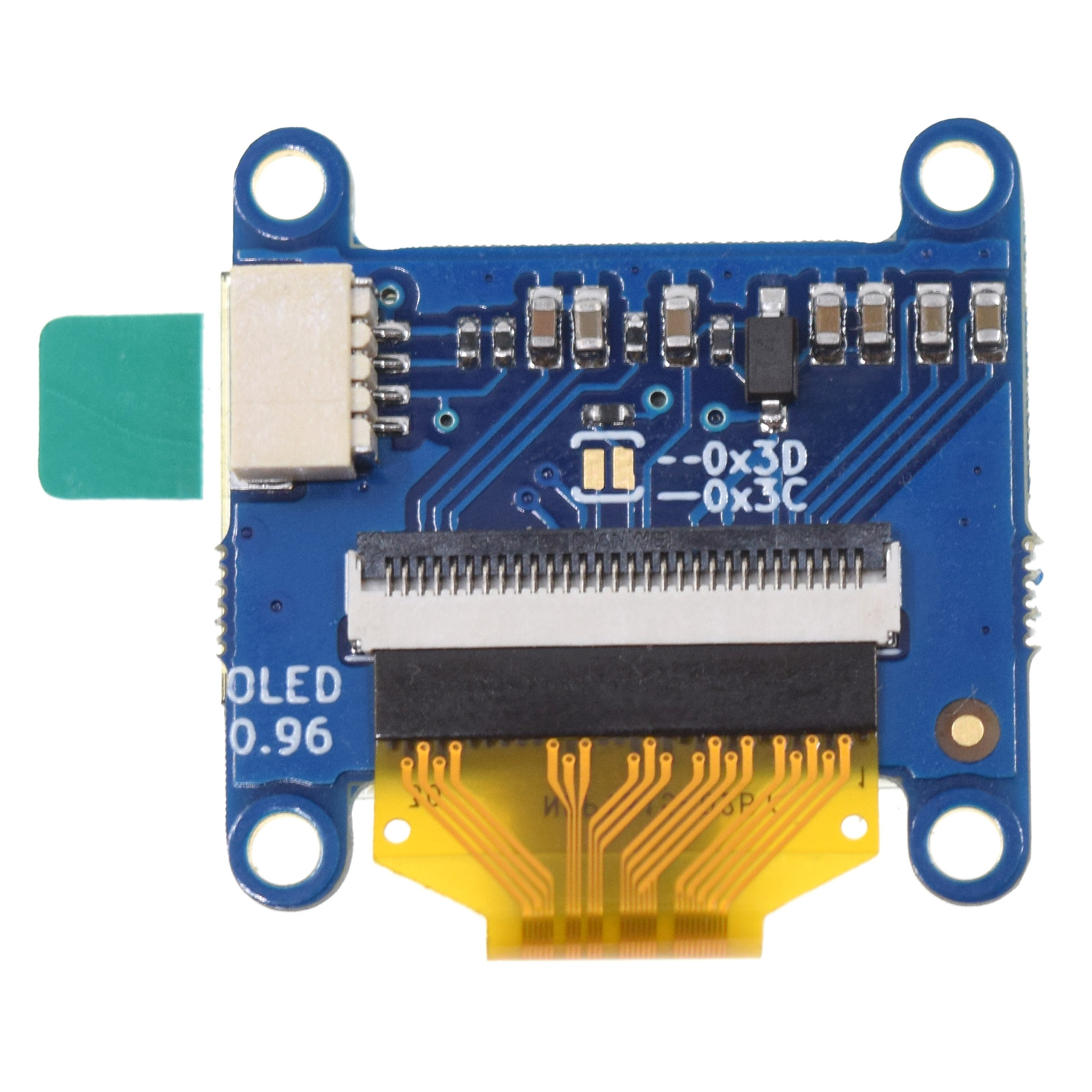

• Driver IC: SSD1306 (I2C Address: 0x3D or 0x3C)

Pins

LOLIN I2C Port

Documents

• Schematic v1.0.0 [PDF]

• Dimension v1.0.0 [PDF]

Arduino

• Install esp8266-oled-ssd1306 Library

• Arduino Examples
