S3 MINI PRO

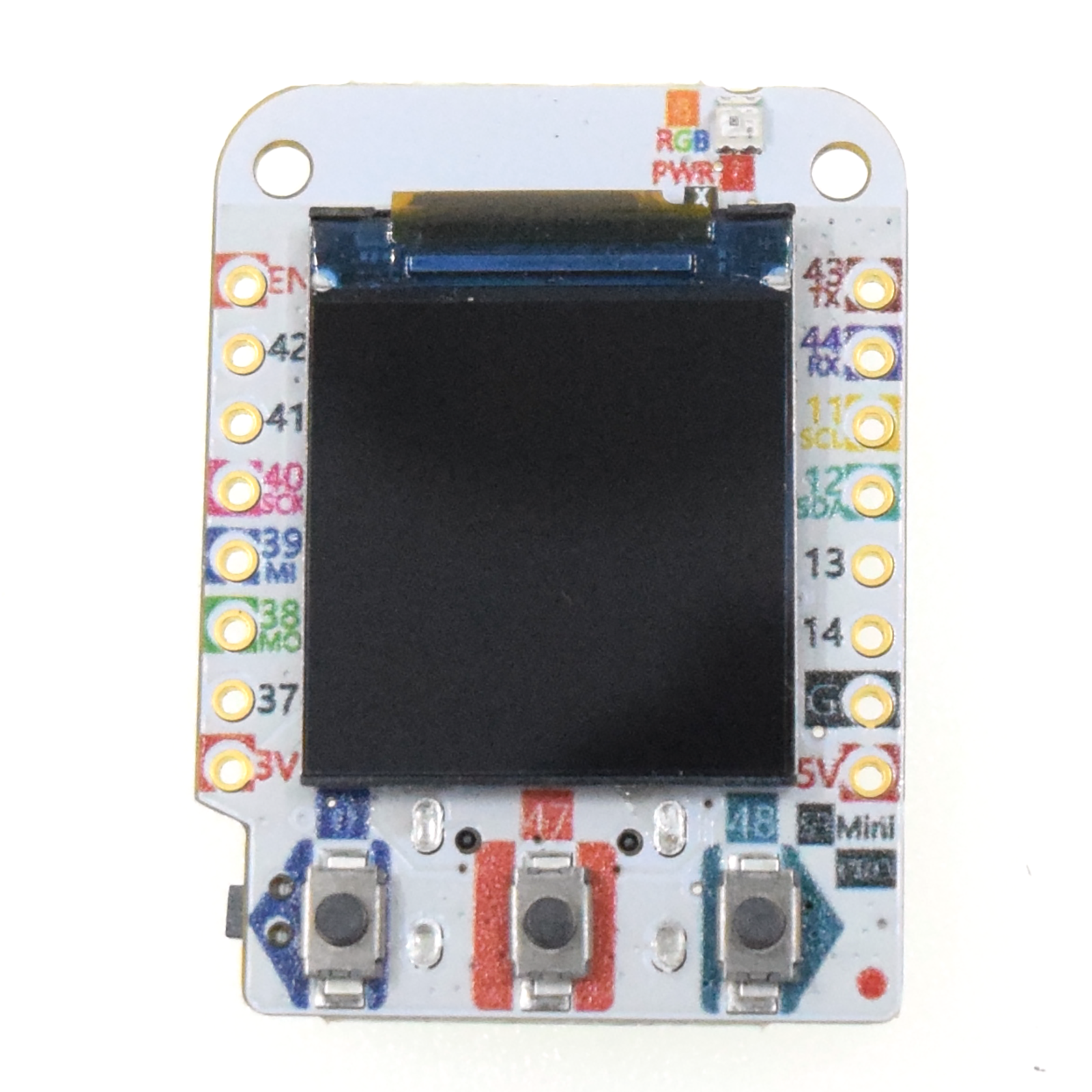

TOP_IMG

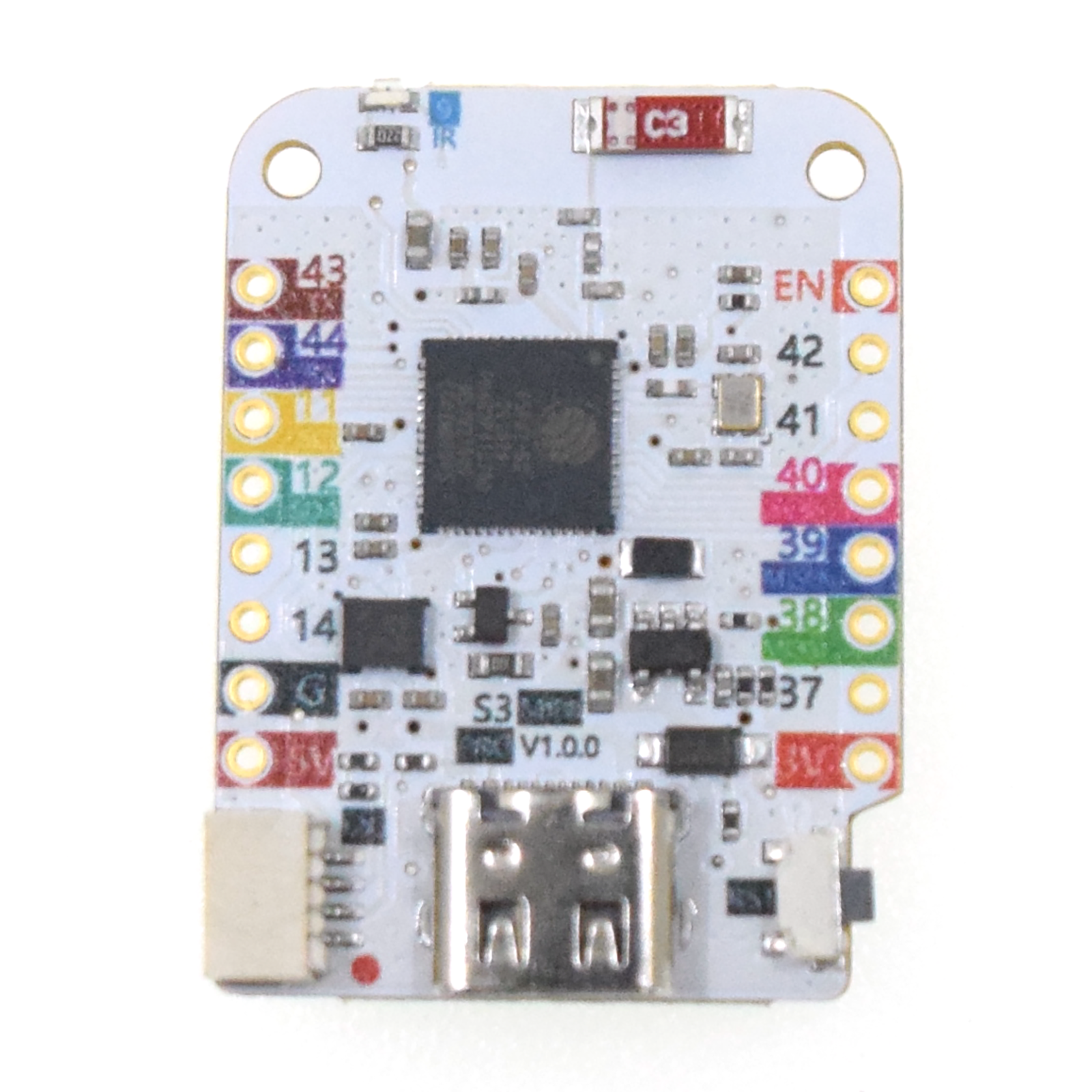

BOTTOM_IMG

WiFi & BLE boards based ESP32-S3FH4R2 with 0.85 inch TFT Screen and IMU.

[Buy it]

Features

  • based ESP32-S3FH4R2

  • 2.4 GHz Wi-Fi

  • Bluetooth LE

  • 4MB Flash

  • 2MB PSRAM

  • 0.85” 128x128 LCD TFT display (GC9107/GC9A01)

  • 6D MEMS IMU (QMI8658C)

  • 12x IO

  • 3x Button (IO0, IO47, IO48)

  • 1x RGB LED (Data: IO8, Power: IO7)

  • 1x IR (IO9)

  • ADC, DAC, I2C, SPI, UART, USB OTG

  • Compatible with MicroPython, Arduino and ESP-IDF

  • Default firmware: MicroPython

Tutorials

Documentation

Technical specs

Operating Voltage

3.3V

Digital I/O Pins

12

Clock Speed

240MHz

Flash

4M Bytes

PSRAM

2M Bytes

Size

34.3*25.4mm

Weight

5g

Pin

../_images/s3_mini_pro_v1.0.0_4_16x9.png ../_images/s3_mini_pro_v1.0.0_5_16x9.png
