HR8833 Motor Shield

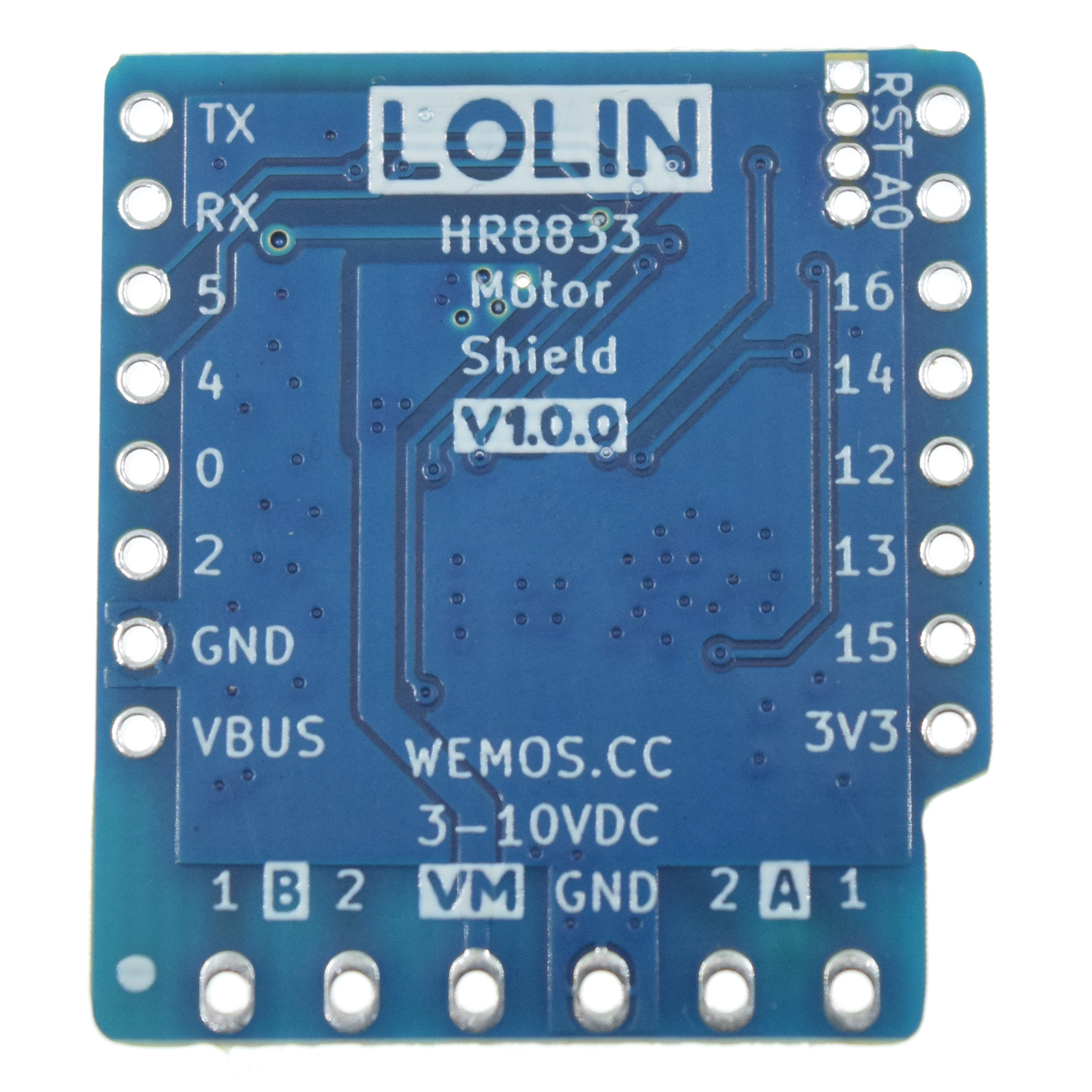

TOP_IMG

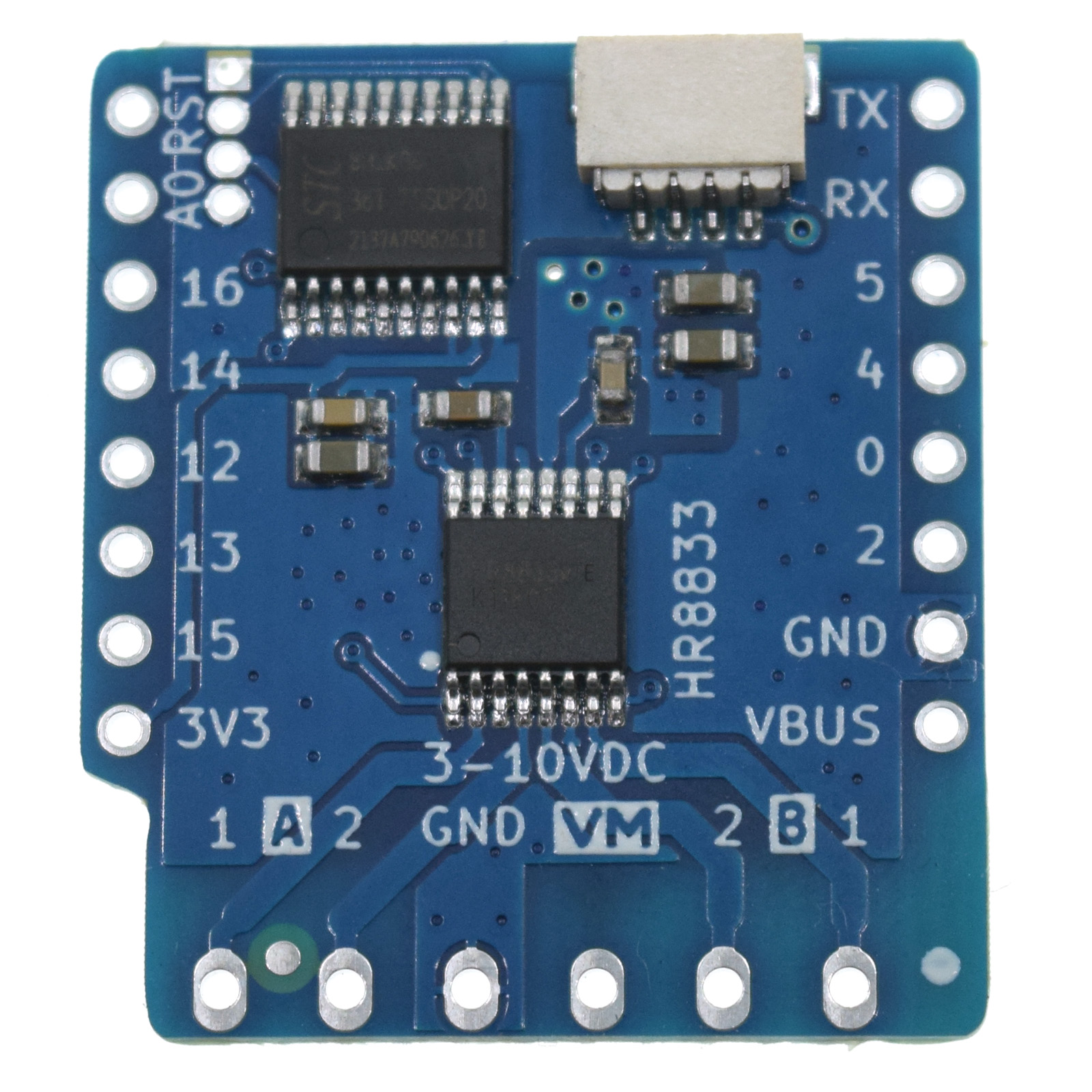

BOTTOM_IMG

I2C dual motor driver shield based on HR8833. [Buy it]

Features

  • I2C interface

  • Power supply voltage: VM=3-10V

  • Output current: Iout=1.5A(average) / 2.5A (peak)

  • CW/CCW/short brake/stop motor control modes

Pins

D1 mini

GPIO

Shield

D1

5

SCL

D2

4

SDA

  • VM: Motor power supply + (3-10VDC)

  • GND: Motor power supply -

  • 1-A-2: Motor A

  • 2-B-1: Motor B

Documents

Arduino
