Motor Shield
|
|
I2C dual motor driver shield. [Buy it]
Features
I2C interface
Power supply voltage: VM=15V max
Output current: Iout=1.2A(average) / 3.2A (peak)
Standby control to save power
CW/CCW/short brake/stop motor control modes

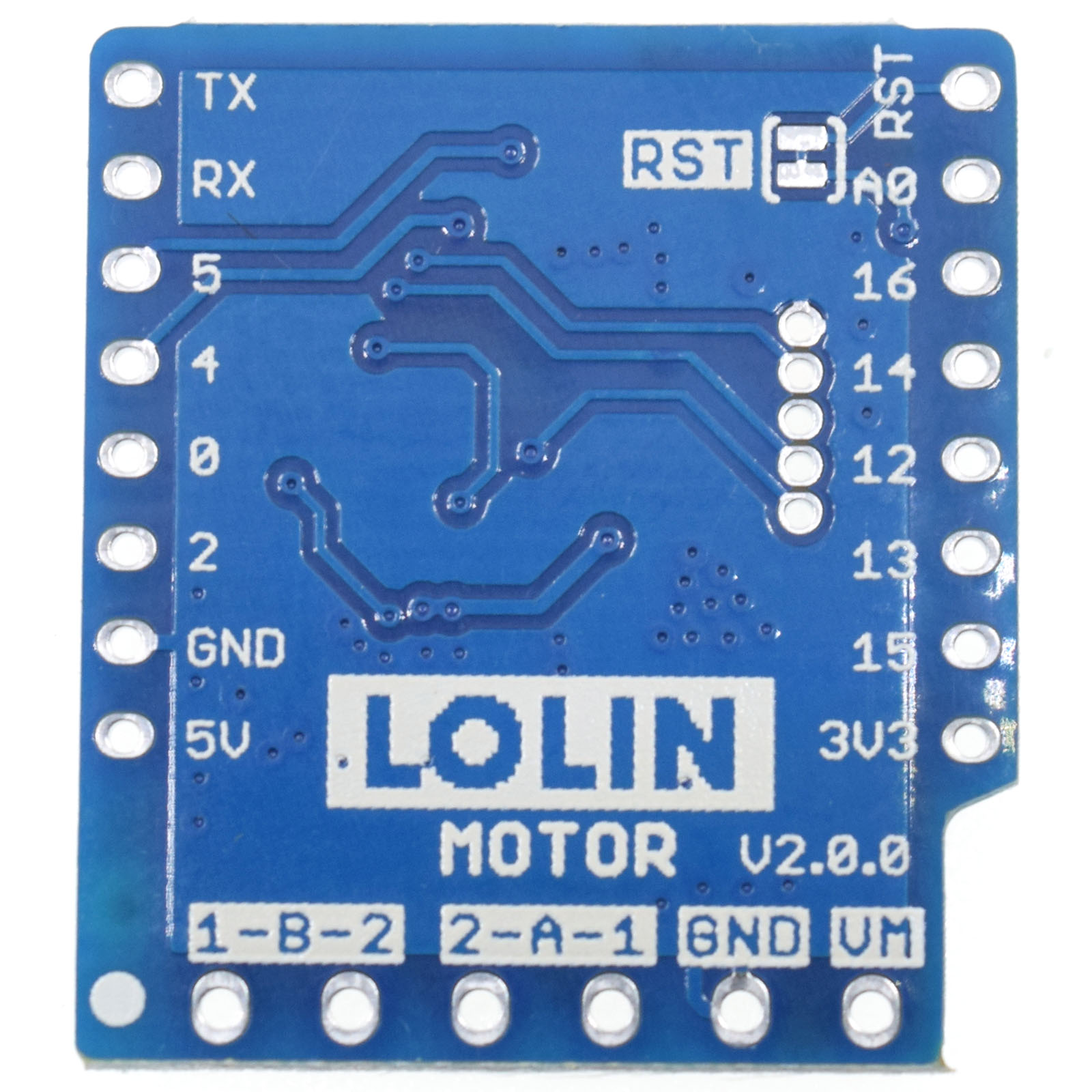

Pins
D1 mini |
GPIO |
Shield |
D1 |
5 |
SCL |
D2 |
4 |
SDA |
RST |
RST |
RST |
VM: Motor power supply + (Max 15Vdc)
GND: Motor power supply -
1-A-2: Motor A
2-B-1: Motor B
