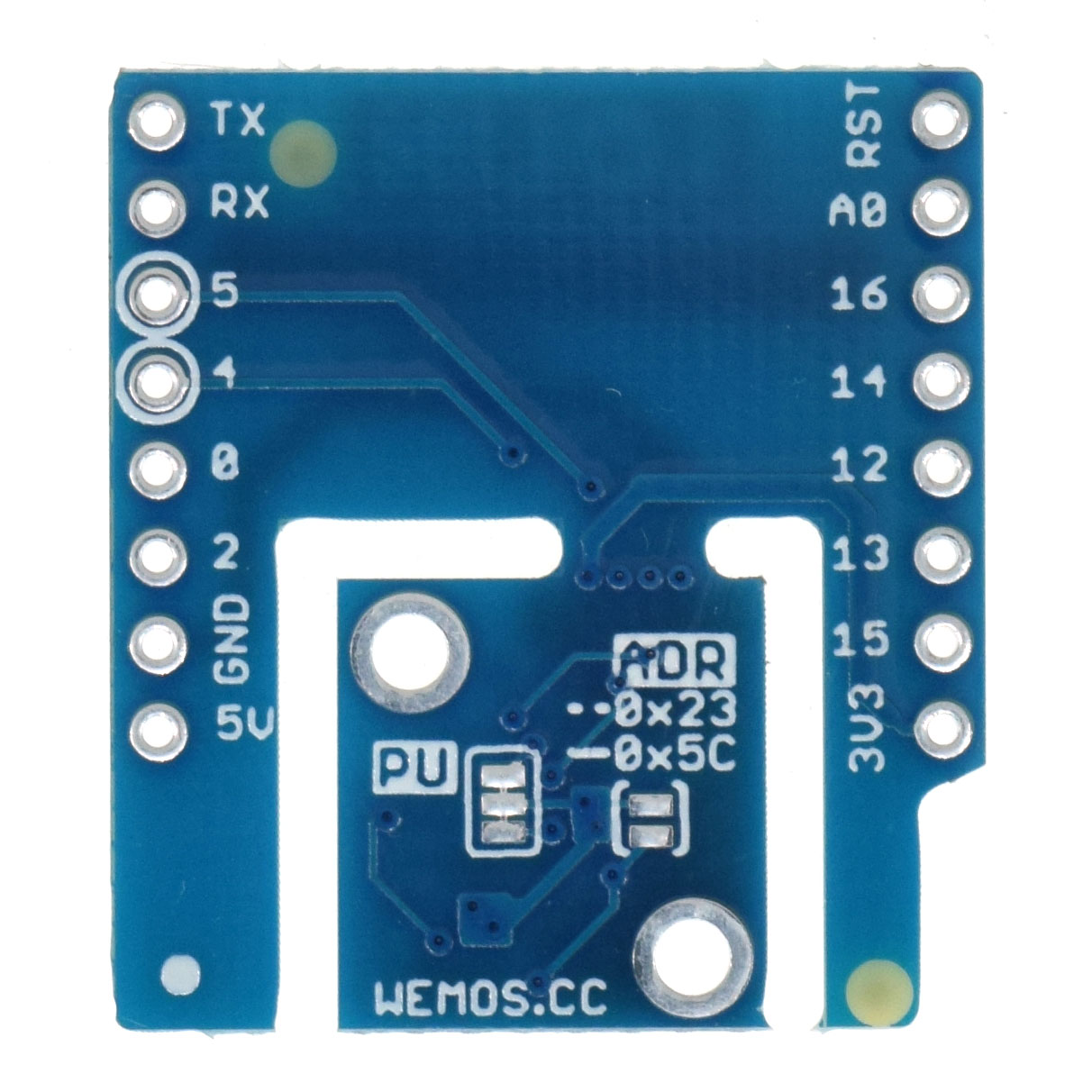

Ambient light Shield (BH1750)
I2C Interface digital illuminance sensor shield based BH1750FVI. [Buy it]
Features
I2C Interface
Two user selectable addresses
BH1750FVI Illuminance to Digital Converter
Wide range and High resolution. ( 1 - 65535 lx )

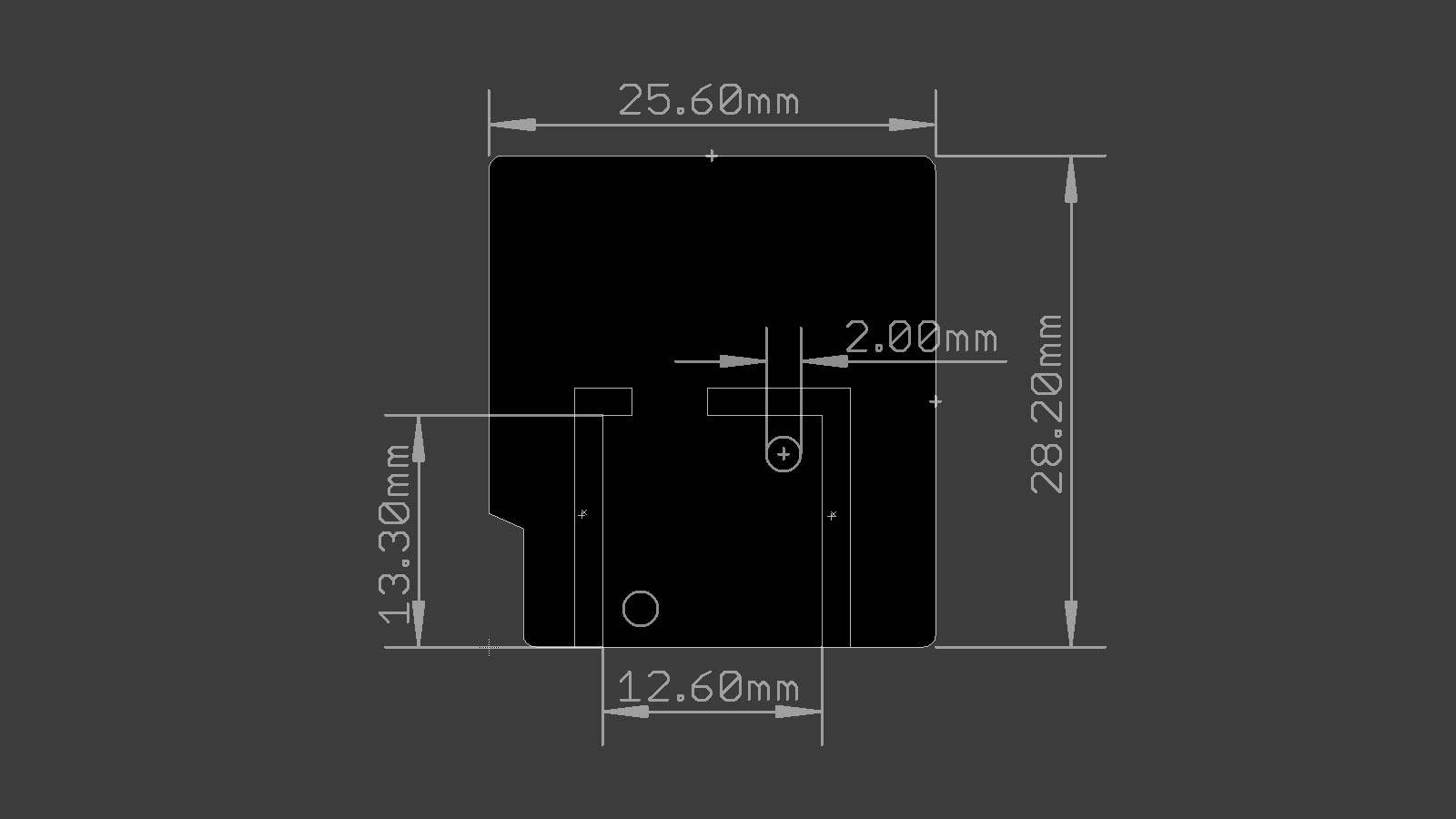

Separable design
Φ2mm mounting holes
Pins
D1 mini |
GPIO |
Shield |
D1 |
5 |
SCL |
D2 |
4 |
SDA |
Documents
Arduino
Install BH1750 Library
