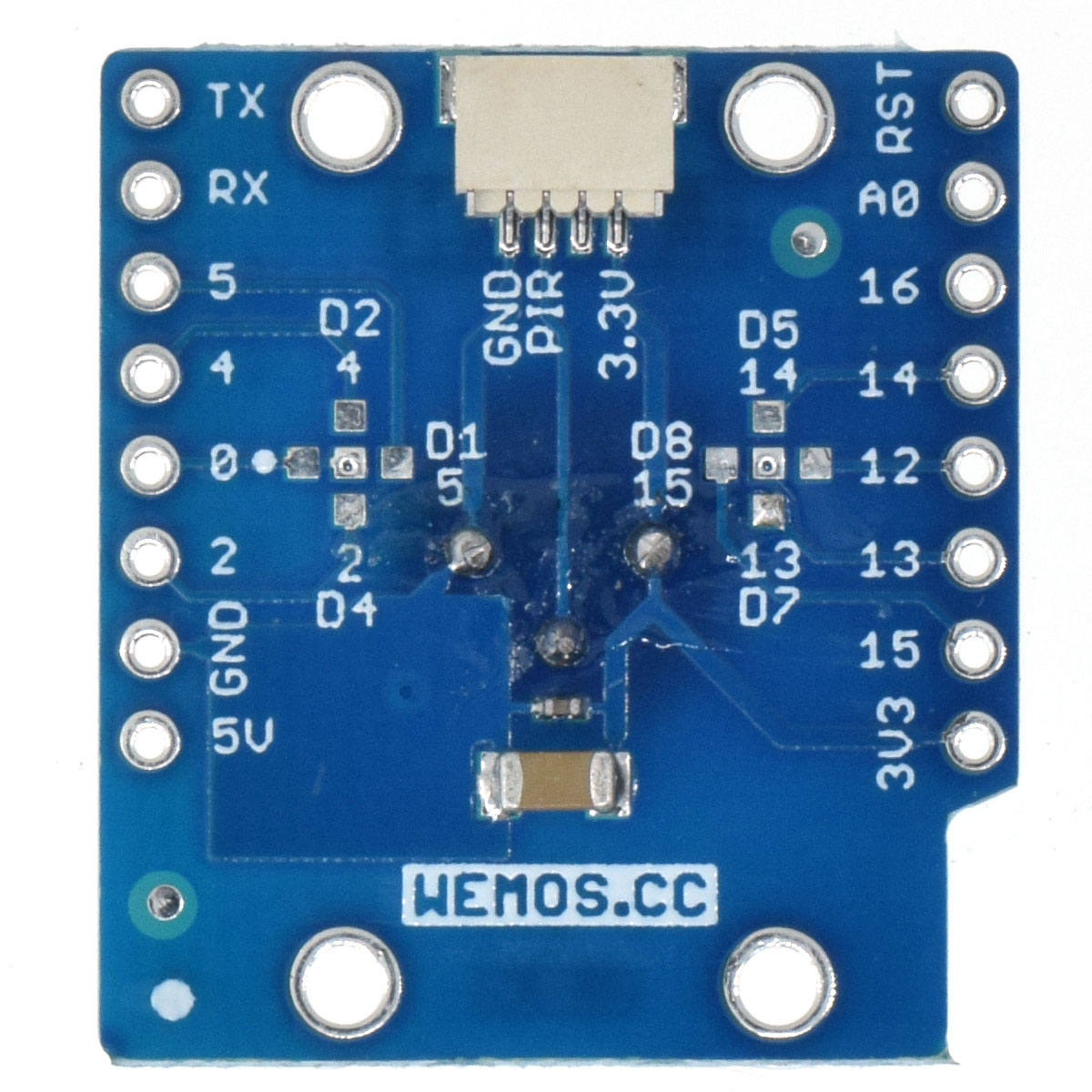

PIR Shield

Passive infrared sensor shield. [Buy it]

Features

• Configurable IO (Default: D3/GPIO0)
• Φ2mm mounting holes

Pins

D1 mini	GPIO	Shield
D3	0	PIR

Documents

• Schematic v1.0.0 [PDF]
• Dimension v1.0.0 [JPG]

Arduino

• Arduino Examples
