SHT30 Shield

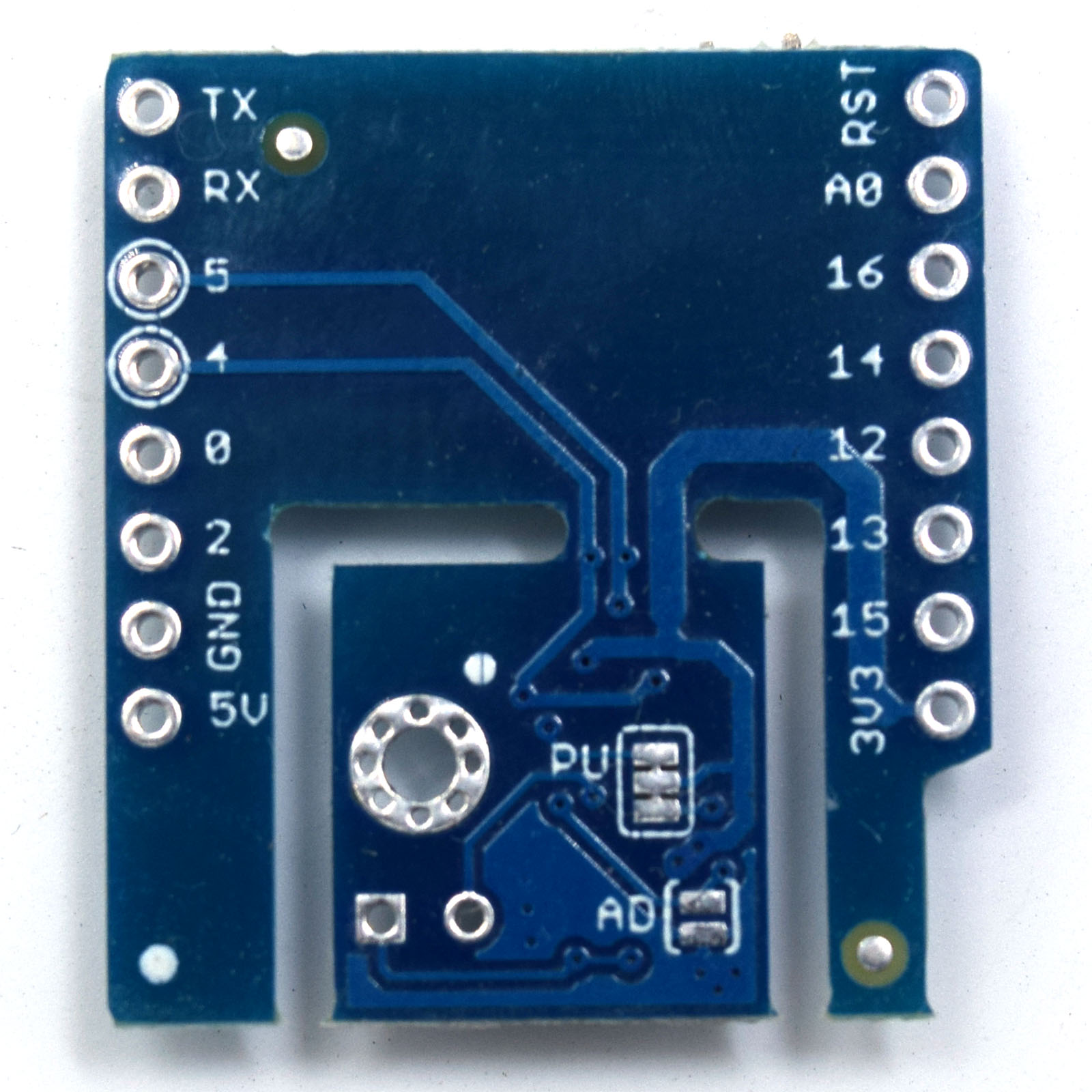

TOP_IMG BOTTOM_IMG

I2C Interface digital temperature and humidity sensor shield based SHT30. [Buy it]

Features

  • I2C Interface
  • Two user selectable addresses
  • Typical accuracy ±3%RH and ±0.3°C
  • Separable design
  • Φ2mm mounting holes

Pins

D1 mini GPIO Shield
D1 5 SCL
D2 4 SDA
